六色LED数字化天幕/地排灯
LED Digital Cyclorama Light

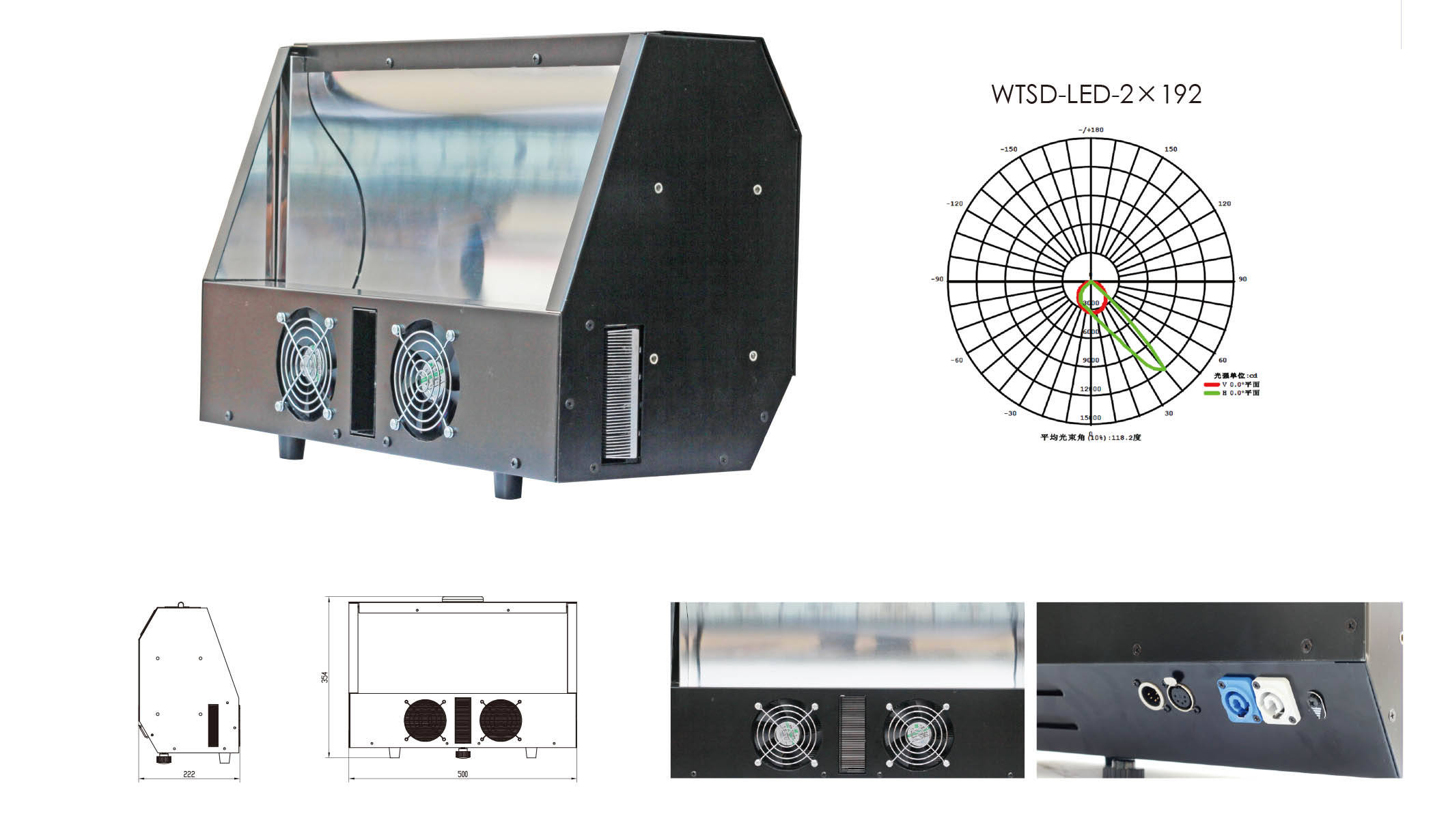

WTST-LED-2X192/WTSD-LED-2X192

主要特点
采用6色LED,配合显色指数优化算法,兼容宽色域彩色和高显色性白光照明,满足剧场、演播室专业摄
影、摄像要求;
灯具光效高,比传统卤钨光源天幕灯具节能70%;
自由曲面全反射设计,采用各向异性反光板,形成非对称光场,完美实现均匀的天幕照明;
垂直方向可均匀覆盖8米高度,仅用天排灯即可均匀照亮天幕,可省去地排灯,节省舞台空间;
调光分辨率高达65536 级,起光照度小于万分之一,完美实现类卤钨灯TLD(Tungsten-Like Dimmer)
平滑调光;
调光PWM频率高达29kHz,杜绝频闪现象。
Main Features
Utlizing 6 types of LEDs and optimization algorithm for color randering, the fixture is
compatable with large color gamut and high color rendering white light.
High efficacy, save 70% energy compared with conventional tungsten cyclorama fixture;
With free-form reflector made by aeolotropic material, generating perfect asymmetric
light output, lighting the cyclorama smoothly;"
Cover 8m high cyclorama, groundrow can be removed to get more free space.
The dimming resolution can be up to 65536 levels, the lowest lighting illumination is less
than 1/10000 of maximum illumination, can realize a TLD (Tungsten-Like Dimmer) smooth
dimming;"
flicker free, dimming PWM frequency is up to 29kHz.
